Simpson Strong-Tie Strong-Drive SDW SDW22634-R50 Screw, 6-3/4 in L, Low-Profile, Truss Head, 6-Lobe Drive, 50 PK

Simpson Strong-Tie

$54.71~~$54.71~~

Applicable Materials: Wood
Drive Size: T40
Drive Type: 6-Lobe
Finish: Electro-Coated
Head Type: Low-Profile Truss
Model #: SDW22634-R50
UPC #: 707392225300
SKU: 7502610

Your shopping list will be used for pickup in-store

Product Details

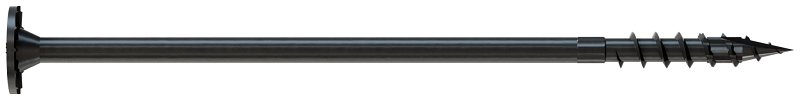

The Strong-Drive® SDW EWP-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply members made up of engineered-wood products. The SDW EWP-Ply installs easily with no pre-drilling and is available in optimized lengths for fastening 1-3/4 in engineered lumber, such as structural composite lumber (SCL). The large, flush head eases the handling of assembled components and simplifies the installation of finishes or structural connectors. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.

Key Features

Large washer head provides maximum bearing area; stamped with the Simpson Strong-Tie® "â‰ " sign and fastener length for easy identification after installation (3/4 in head Dia)
Deep six-lobe T40 recess reduces cam-out, making driving easier
Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
Optimal screw length provides maximum penetration while preventing the point from protruding out the back of the member
High-shear values enable wide spacing, saving time and money
SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications
E-coat® electro-coating is recommended for dry, low-corrosion environments

Item Specifications

Applicable Materials	Wood
Drive Size	T40
Drive Type	6-Lobe
Finish	Electro-Coated
Head Type	Low-Profile Truss
Includes	(1) 6-Lobe T40 Driver Bit

Length	6-3/4
Material	Carbon Steel
Package Quantity	50 PK
Point Type	SawTooth
Thread Length	1-9/16 in
Type	EWP-Ply

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
